使用与简价/Brief Introduction：

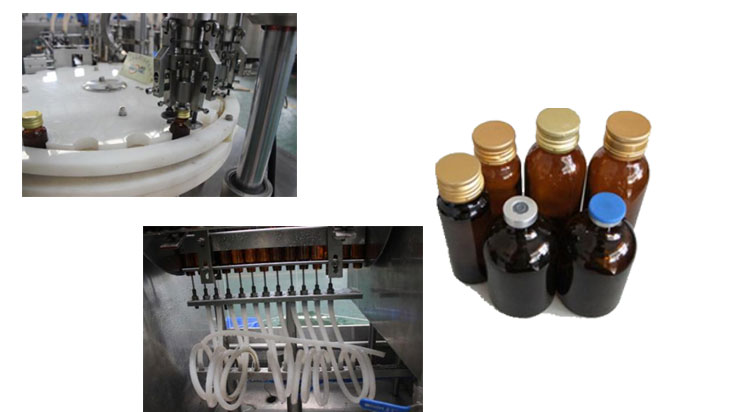

本研发线适宜30ML上服用液的分装研发，由供瓶机、辊筒洗瓶机、线路式分装轧（旋）盖机、落地贴标签签机等专用设备組成，可全主动完成任务理瓶、洗瓶、分装、上盖、旋（轧）盖、贴标签签等步骤。一般广泛用于医药集团、肉食品、纸业的的各样流体材料的分装对接研发。本研发线基本具有GMP标准。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特征 /Characteristic：

◆看起来原料为304不锈钢材质的装饰管，灌装设备部分采316L不锈钢材质的装饰管，合适GMP规范起来。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可应用多型号规格生产制造。can be situable for several bottle specs.◆正常运作增强，风噪小，分装精确度 。Stable running,low noise,precise filling.◆破瓶率低，产品合格达标率高，高能耗少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆一条的多个可单机手游保持和茶叶连锁保持。The whole line can single machine control or interlock control.

能力叁数/Main Technical Parameters：

适用人群規格Filling Volume	30-150ML
灌装线头数Productivity	中速4头              快速路⛎8头 4 at low speed 🌞;         &nbs𓆏p;  high speed 8
生产制造性能	低速度30-50瓶/分     飞速70-100瓶/分 30-50bottles/min  70-100bottles/min
装罐准确度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
24v电源Power Supply	220V/50Hz
工作功率Power Supply	2.5kw
产生线总长Dimension	7500*1000*1700MM
